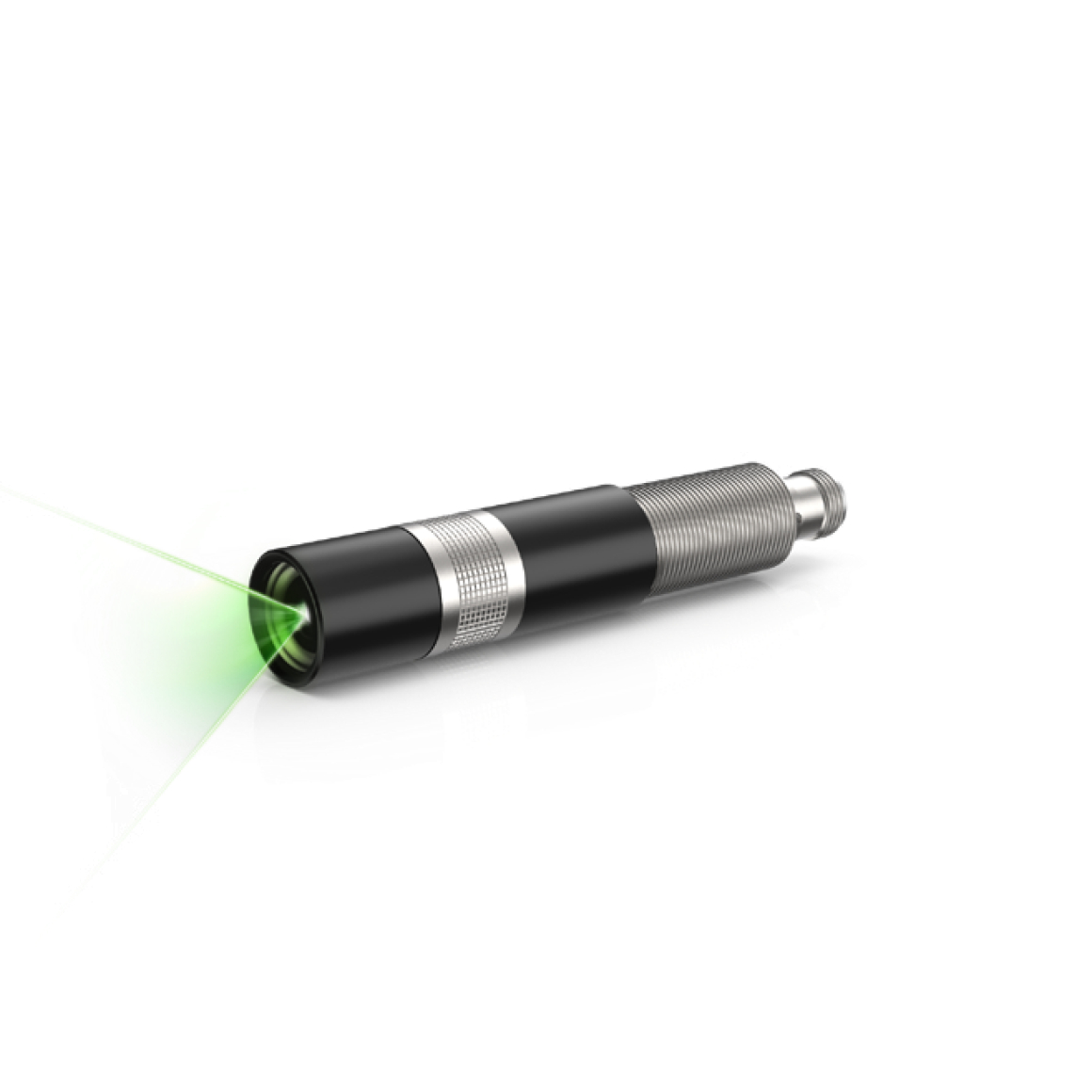

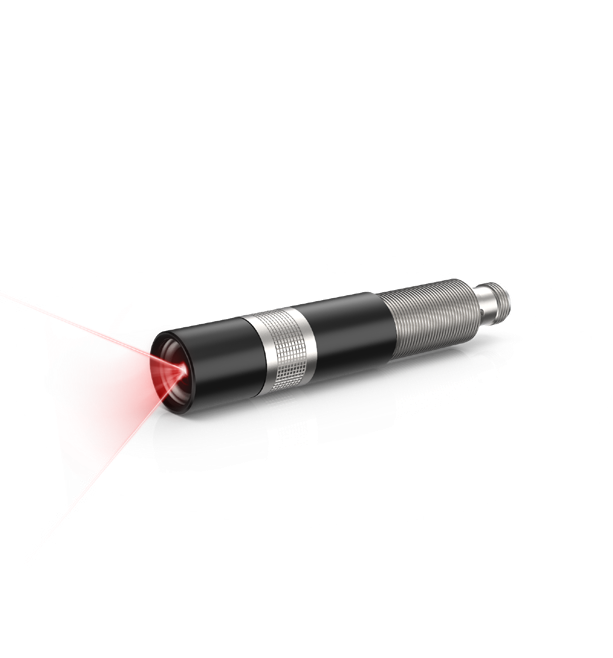

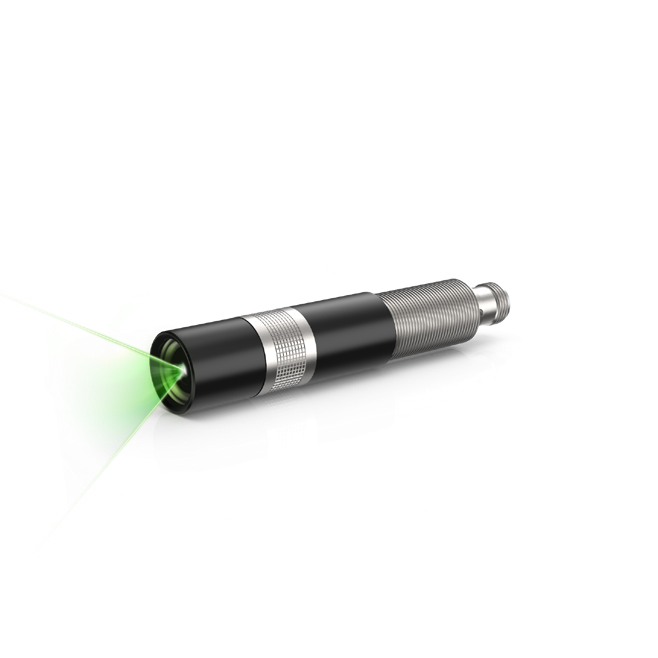

Highlights• Manual or fixed focus
• TTL modulation up to 500 kHz
• Analog intensity control
• Optical output power up to 120 mW
• Wavelengths from 520 - 685 nm
• Industrial standard
• IP67
Machine Vision,Triangulation Sensors,High-Precision Positioning Tasks,3D-Measurement
System specifications
| Wavelength nm |
520 |
532 |
635-685 |
| Wavelength tolerance nm (typical) |
-5~+10 |
± 1 |
±10 |
| Wavelength drift nm / K (typical) |
0.06 |
0.06 |
0.25 |
| Output power mW |
≤40 |
≤40 |
≤120 |
| Electronic versions |
B3 |
B |
B, S3 |
| Pointing Stability μrad / °C |
<15 |
| Long-term power stability (24h) |
±3 % over operating temperature range |
Electrical specifications
| Operating voltage |
5 ~ 30 VDC |
| Operating current (max. at 25°C) |
<300 mA |
<400 mA |
| Protection |
Over temperature protection and LED pre-failure indicator, reverse polarity and transient protection (ESD, burst & surge) |
| Electrical isolation |
Potential-free housing |
| Connection |
4-pin M12 plug |
| Power consumption |
<2.7 W |
<2 W |
Optical specifications
| Fan angles (1) Degrees |
10°, 20°, 30°, 45°, 60°, 75°, 90° (homogeneous lines)
5°, 10°, 15°, 20°, 30°, 90° (Gaussian line profile)
20°, 30°, 110° (raster lens for homogeneous line profile) |
| Line straightness (2) % (of line length) |
<0.05 % |
| Line uniformity (3) % (typical) |
<25 % |
| Dot |
Point elliptical, point circular |
| DOE |
Multi line, crosses, grids, circle with dot, etc. |
| Focus range mm |
100 mm up to 10.000 mm (or customized fixed focus available);
ZM18-B-532 >200 mm |
注：
(1) Line length / fan angle: at >13,5 % lmax
(2) Line straightness: Deviation from best fit line over the middle 80% of the line, for homogeneous lines
(3) Line uniformity: Maximum relative optical power variation over the middle 80% of the line, for homogeneous lines and fixed focus
Electronic versions
| Available Wavelengths |
532 |
520 |
635, 640 |
640-685 |
| Digital modulation na na |
na |
na |
|
<500 kHz |
| Rise Time (Mod High => 90%) |
na |
na |
|
<200 ns |
| Fall Time (Mod Low => 10%) |
na |
na |
|
<100 ns |
| signal level |
na |
na |
|
VIL_max: < +0,9 V
VIH_min: > +2,7 V |
| max. voltage range |
na |
na |
|
0-30 VDC |
| Analog modulation |
na |
na |
|
<10 Hz |
| active range |
na |
na |
|
0-1 VDC |
| max. voltage range |
na |
na |
0-30 VDC |
Environmental conditions
| Operating temperature (1) °C / °F |
-10 °C to +50 °C / 14 °F to +122 °F |
| Storage temperature °C / °F |
-40 °C to +85 °C / -40 °F to +185 °F |
| Humidity % |
<90 %, non-condensing |
| Dissipated heat |
<1 W |
Mechanical specifications
| |
B |
B3 |
S3 |
| Weight g/lbs |
75 g
45 g / 0.1lbs (532nm) |
75 g / 0.17 lbs |
85 g / 0.19 lbs |
| Length mm / in |
108 mm / 4.25 in
136 mm (532nm) |
108 mm
4.25 in |
128 mm
5.04 in |
| Diameter head Ø mm / in |
20 mm / 0.79 in |
| Material |
Aluminium |
| Protection class |
IP67 |
M12 4-pin: A-Coding Male Connector
According to IEC 61076-2-101
- X 1.2： Digital modulation TTL (only S3)
Dimensions:
ZM18B Z M18B3

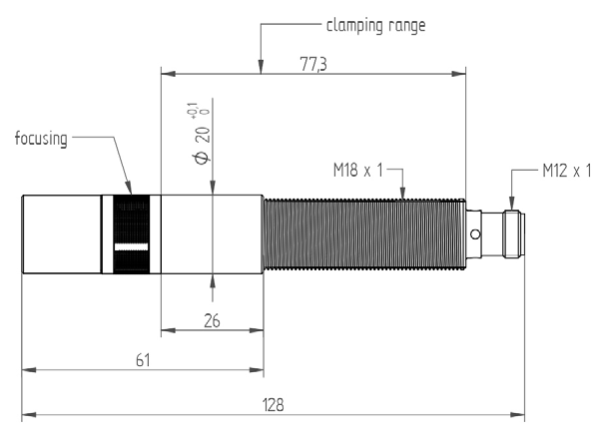

ZM18S3

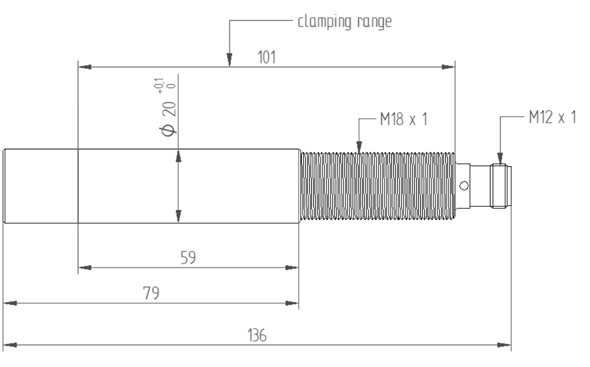

ZM18B-532
