The LP-HFD2 is the successor of our reliable laser projector LP-HFD. In addition to the new housing, stated IP65,the development has been focused on temperature stability in particular.
Fiber-coupled lasers (with red and/or green laser source) are applied with output power of 7 mW. When requested, output power up to 28 mW is possible. The range of standard optic focus is 0.5 m to 7.0 m.With a tele-optic, working distances up to 14 m can be realized. For higher ambient temperatures there are several cooling options available such as extended air hose or water cooling system.
Typical data connection is Ethernet, more communication options via PROFINET or serial connection are also possible.

key features new LP-HFD2

 Improved LP-HFD2
 New housing
 Improved IP rate and electrical protection
 New Laser Projector: Improved LP-HFD2
 Retrofit cooling options:extended tube and water cooling option
 Multi reference sensors
 Z-Fibre (ZFSM):
 Advantage of Z-Fibre
 Tele-optics

 Housing
 New designed Z-LASER aluminium housing
 Less weight: 7,3 kg (LP-HFD: 12 kg)
 Smaller housing :500 x 170 x 140 (180 with fan) in mm (2/3 of LP-HFD)

 IP-Rate
 IP65 rated
 protection against dust and splash water

 Electrical Protection
 protection class 3
 anti-static discharge prevention

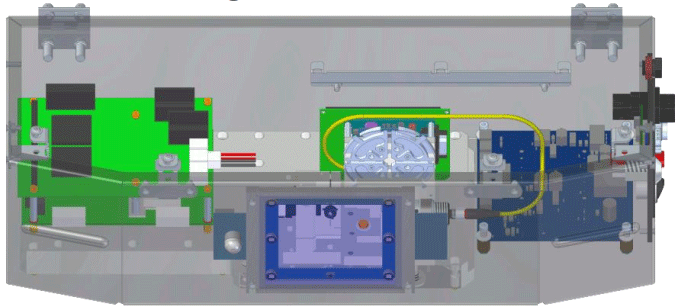

 Improved thermal management

 Better heat transportation (emission) out of the device due to rearrangement of heat producing components
 Heat input is 10 Watt less due to external power supply
 Less heat generation due to DC/DC converter with higher efficiency (95% less)
 Temperature warning in LPM is now 45°C (before: 40°C).shutdown of the laser source at 50° C

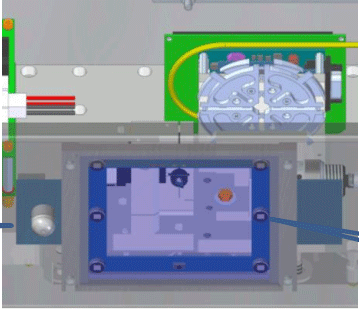

 Multiple Ref-Sensors (Improved DCP-Search)

 2 on board as standard – second can be activated by dip-switch
 Up to 6 possible (optional)
 Service & Maintenance:
 Simplified wiring
 Reduced Cabling Effort

Advantage of Z-Fibre (ZFSM)

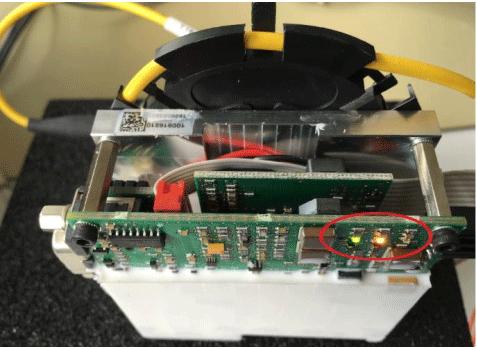

1) Improved pointing stability (less boresight error & thermal drift):
 ZM18 ≃ 15µrad/K  10°C…40°C  30x15µrad  450µrad  0,45mm @1m
 2,25mm @ 5m!
 ZFSM ≃ 3µrad/K
 0,45mm @ 5m!
 better accuracy within the specified temp. range
2) Improved concentricity (coaxiality):
 ZM18 ≃ +/-10mrad; dF[1…5m] ≃ 1mrad
 ZFSM ≃ 3mrad; dF[1…5m] ≃ 0,3mrad
  better accuracy within the specified temp. range

3) Round Spot: (Advantage for DCP search)
 Reduced line thickness because of less ellipticity in one axis
 Better Laser power distribution from the center to the edges
4) Laser power output noise less than 5% within the specified temperature range (e.g. AZURE 20%)
5) Advanced Reliability. Extremely low failure rate is expected.(important especially for the green laser source)
6) Focusable up to 7m, exchangeable red vs green
7) Better life expectancy (Red > 10.000h; Green > 8.000h; MTTF)
8) Less mechanical drift  better accuracy within the specified temperature range.Assembly is exchangeable 1:1 with the latest known Laser Sources.(ZM18,ZC or Azure GLxx-T)

Multicolor LP-HFD2

 Multicolor projection (optional)

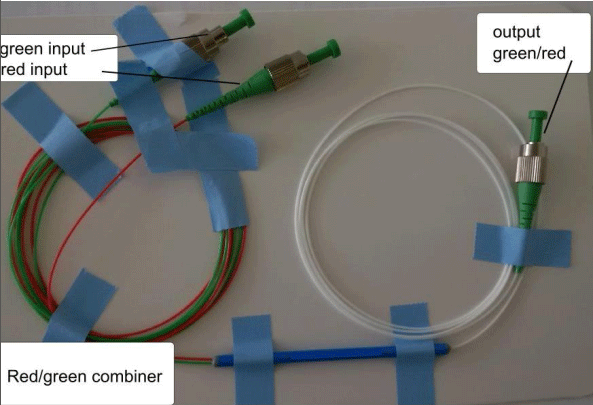

 2 ZFSM (green + red) with fibre-combiner
 Simultaneously projection of red, green and yellow if both are on.
 Different groups can be projected in different colors:
 Pen 1 = red
 Pen 2 = green
 Pen 4 = yellow
 No offset is visible for yellow due to fibre combiner and same optical path
 In principle also RGB is possible

Special version: Tele Optics

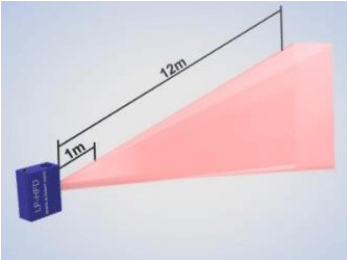

• Wide range focal adjustment

 New far-range optics
 Galvo Set with mirrors for 5mm aperture in combination with fibre:1mm spot in 12m distance is possible

New LP-HFD2: cooling options

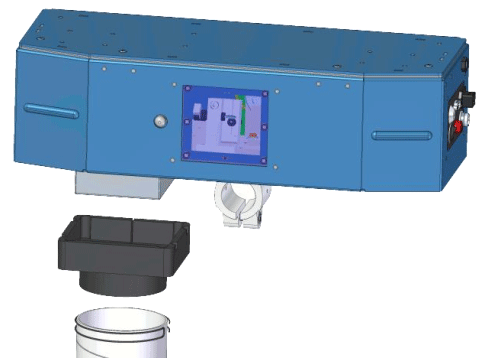

 1. retrofit options: extended tube
 Article: 101038900 SZ LP-HFD2/ZLP:Air hose with 10m length
 Article: 101061400 SZ LP-HFD2:Air hose with additional diagonal fan with filter at the end of 10m tube

 2. retrofit options: Adaptive water cooling.no longer a special LP model with massive block

 101026700 SZ LP-HFD2/ZLP Adaptive water cooling adapter – one for each projector in combination with SK Mini re-cooling system with 100679800 from Rittal (in addition)

Z-laser Products

• Group by
  • None
  • id
  • Product Name
  • Image
  • Intro
• PDF

id	Product Name	Image	Intro
Display # 5 10 15 20 25 30 50 100
1 ( 1 )
No records
1	Z-Laser Projector LP-HFD2		The LP-HFD2 is the successor of our reliable laser projector LP-HFD. In addition to the new housing, stated IP65,the development has been focused on temperature stability in particular. Fiber-coupled lasers (with red and/or green laser source) are applied with output power of 7 mW. When requested, output power up to 28 mW is possible. The range of standard optic focus is 0.5 m to 7.0 m. With a tele-optic, working distances up to 14 m can be realized. For higher ambient temperatures there are several cooling options available such as extended air hose or water cooling system. Typical data connection is Ethernet, more communication options via PROFINET or serial connection are also possible. HIGHLIGHTS • Very exact, fast and stable laser projection • Optimized for projection on 3D objects • High fber-coupled laser beam performance • Large fan angle enables large operating range (up to 80° x 80°) • Industrial IP65 housing • Improved thermal management • Operating up to 60 °C ambient temperature with water cooling • Optional extended air hose and water cooling • Data transmission serial or Ethernet • Integration to a multiprojection system

SYSTEM SPECIFICATIONS
Laser source: Fiber-coupled red or green laser diode

Frequency of projection: Max. 50 Hz (depends on the projection)
Weight: 7.3 kg (plus ca. 1.4 kg for separate power supply)
Dimensions (L x W x H): 500 x 200 x 141 mm (181 mm incl. fan);19.685 x 7.874 x 5.551 in (7.126 incl fan)
IP protection class: IP65

SOFTWARE / HANDLING
Software: LPM
Graphic fles without LPM: HPGL / HPGL 3D
ACCESSORIES
Remote control: Optional
ELECTRICAL SPECIFICATIONS
Operating voltage: 24 VDC ±5%
Protection class electrical: 3 (protective low voltage)
Electrical isolation: Potential-free housing, connection to GND through 500 kΩ
Interfaces: 1. Ethernet TP, 100 Base TX Cat5/Cat6,2. RS-232 IV24 (max. cable length 15 m) 3. Prof Net external optional, other feldbus systems on request
Power consumption (typical): 50 W (max. 100 W)
AMBIENT CONDITIONS
Operating condition: +5 °C up to +45 °C (with passive cooling)  +5 °C up to +50 °C (with cooling air hose)  +5 °C up to +60 °C (with adaptive water cooling)
Storage temperature: -5° C up to +60 °C
Humidity (max.): 80% relative, non-condensing

Accessories

Name	Image	Description
No records
Cardanic mount		Cardanic mounting for laser projectors, for a flexible positioning along all three directional axes. Flexible, simple, stable, industrial standard.
Air cooling / Water cooling		Optional cooling for laser projectors.At high temperatures, an extendable air or water cooling, lowering the projectors temperature to the desired point, can be used to achieve a constant projection and extend the projector's lifetime.
Cable or wireless remote control		For remote control of laser projectors.Various commands to laser projector Transmission distance approx. 30m with wireless control Absolutely precise shift of the projection etc.The remote control can be used with laser projectors LP-HFD red and LP-HFD green. Some commands can be: "Calibrate laser" "Next and previous pen" "Change of projection image" "Rotation" "Adjustment"
Industrial PC cabinet		Optionally with UPS and water cooling. This robust industrial PC-Cabinet is especially designed for a rough industry use. Besides the control computer, also the network panel with single on/off switches for the projector are integrated. Optionally the PC-Cabinet can include an independent power supply (UPS) and a water cooling for the projector.
Barcode reader		By using barcodes, predefined projections can be easily retrieved.
Glass reflectors		For referencing the laser systems.Used for the drift compensation and referencing the laser systems. Exact adjustment of the laser to the operating area at mechanical and thermal effects.
Peltier cooling		Optional cooling for laser projectors.Peltier cooling for laser projectors as upgrade. Integrated in cover, external power supply.
Customer-designed laser menu		Laser projected menu, various customization options.The laser projector can be controlled through a projected menu via reflection. This menu can be customized for your needs.
LP Mounting kit		Mounting kit for laser projectors.Content: 2 x cross clamping piece 1 x bottom clamping piece 1 x flange clamping piece FK40 2 x steel tube, 150mm 1 x steel tube 300mm 1 x steel tube 600mm 1 x adapterplate 2 x fixing pin 4 x hexagon socket 1 x screw M8x40mm 4 x spring ring 4 x U-ring 2 x patch-cable CAT-5 2m 1 x cross-over cable 20m 1 x 5-port Switch Hub
